Ford Performance Off-Road Lineup • Sheridan, WY
Used Ford Raptor Trucks & SUVs for Sale in Wyoming
Engineered by Ford Performance for high-speed desert running, rocky mountain climbs, and deep winter snow, a used Ford Raptor brings race-bred suspension and wide-body stability to Wyoming's toughest terrain. At Fremont Ford Sheridan, our pre-owned Raptor inventory spans the flagship full-size F-150 Raptor® and supercharged F-150 Raptor R™, the agile midsize Ranger Raptor®, and the Ultra4-inspired Bronco Raptor® SUV.
Equipped with position-sensitive FOX™ Live Valve™ internal bypass shocks, mechanical-locking four-wheel drive, heavy-duty underbody skid plates, and twin-turbocharged EcoBoost® or supercharged V8 powertrains that maintain power across high-elevation passes in the Bighorn Mountains, every used Raptor at 1658 Coffeen Ave is inspected by factory-trained technicians and eligible for statewide delivery across Wyoming.
Pre-owned Ford Raptor 4x4 models feature wide-track long-travel suspension, FOX™ Live Valve™ dampers, and locking differentials.
405 to 720 HP
High-Output Twin-Turbo EcoBoost® V6 & 5.2L Supercharged V8**
Up to 13.1 In.
Ground Clearance (F-150 Raptor® 37 & Bronco Raptor®)
FOX™ Live Valve™
Position-Sensitive Electronic Internal Bypass Shocks
Up to 8,700 Lbs.
Max Conventional Towing (F-150 Raptor R™ Properly Equipped)*
Pre-Owned Ford Raptor Lineup: Engine, Suspension & Off-Road Specs
Because our Used Raptor search page displays every Raptor model across the Ford lineup, comparing engine output, rear suspension design, tire diameter, and towing capacity helps you choose the right rig for Sheridan County trails and highway travel:
| Ford Raptor Model | Engine & Output** | Suspension & 4x4 Drivetrain | Tires, Ground Clearance & Angles | Max Towing & Payload (Properly Equipped)* |
|---|---|---|---|---|
| F-150 Raptor® (Full-Size SuperCrew® 5.5-Ft. Box) |
3.5L High-Output EcoBoost® Twin-Turbo V6 450 hp @ 5,250 rpm • 510 lb.-ft. @ 3,500 rpm • 10-Speed SelectShift® Auto |
5-link rear coil-spring suspension with Panhard rod (2021+) • FOX™ 3.1 Live Valve™ internal bypass shocks • Hi-Lock 4WD transfer case | 35" LT315/70R17 (11.9" clearance; 30.7° approach) Opt. 37x12.5R17 (13.1" clearance; 33.1° approach) |
Up to 8,200 lbs. towing • Up to 1,405 lbs. payload (36.0-gal. tank) |
| F-150 Raptor R™ (Full-Size Supercharged V8) |
5.2L Supercharged & Intercooled V8 700–720 hp @ 6,650 rpm • 640 lb.-ft. @ 4,300 rpm • 10-Speed SelectShift® Auto |
5-link rear coil-spring suspension • FOX™ 3.1 Live Valve™ shocks with 1.0" front rod diameter • Hi-Lock 4WD + Torsen® front differential | Standard 37x12.5R17 all-terrain tires • 13.1 in. ground clearance • 33.1° approach / 24.9° departure | Up to 8,700 lbs. towing • Up to 1,410 lbs. payload (36.0-gal. tank) |
| Ranger Raptor® (Midsize SuperCrew® 5-Ft. Box) |
3.0L EcoBoost® Twin-Turbo V6 405 hp @ 5,750 rpm • 430 lb.-ft. @ 4,500 rpm • 10-Speed SelectShift® Auto |
Forged aluminum front A-arms + Watts-link rear coil-spring suspension • FOX™ 2.5" Live Valve™ shocks • Front & rear locking differentials | Standard 33" LT285/70R17 all-terrain tires • 10.7 in. ground clearance • 33.0° approach / 26.4° departure | Up to 5,510 lbs. towing • Up to 1,373 lbs. payload (20.3-gal. tank) |
| Bronco Raptor® (4-Door Wide-Body 4x4 SUV) |
3.0L EcoBoost® Twin-Turbo V6 418 hp @ 5,750 rpm • 440 lb.-ft. @ 2,750 rpm • 10-Speed Auto |
HOSS 4.0 with FOX™ 3.1 Live Valve™ dampers (13.0" front / 14.0" rear travel) • Dana 44™ front / Dana 50™ rear axles + front stabilizer bar disconnect | Standard 37x12.5R17 all-terrain tires • 13.1 in. ground clearance • 47.2° approach / 40.5° departure • 37.0" water fording | Up to 4,500 lbs. towing • Up to 1,155 lbs. payload (20.8-gal. tank) |
Used Ford Raptor Buyer's Guide: Generations & Model Breakdown
Whether you are shopping for a full-size pre-owned F-150 with desert-racing suspension or a midsize truck that fits narrower Bighorn National Forest two-tracks, understanding how each Raptor generation is built helps you pick the right vehicle:
3rd-Generation Full-Size (2021–Present)
Gen 3 F-150 Raptor® & Raptor R™
Replaced rear leaf springs with a 5-link rear coil-spring suspension and 24-inch coil springs for progressive wheel travel over washboard gravel and deep ruts.
- 5-Link Rear Coil Suspension: Extra-long trailing arms and a Panhard rod keep the rear axle planted across rough Wyoming ranch roads while maintaining an 8,200-lb. (Raptor®) to 8,700-lb. (Raptor R™) towing rating when properly equipped.

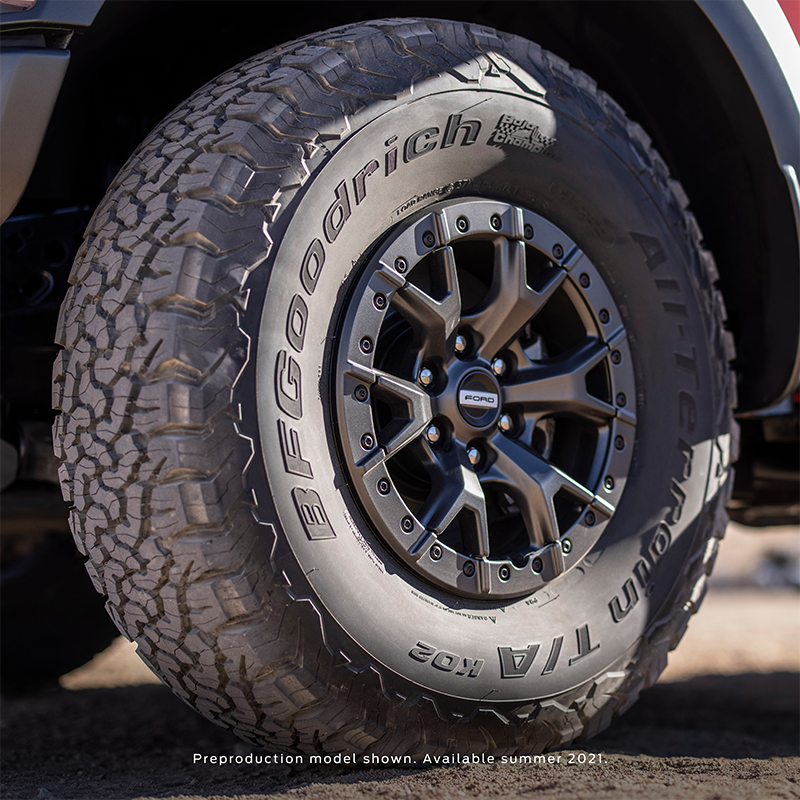

- Raptor 37 & 801A / 802A Packages: Look for pre-owned models equipped with factory 37-inch BFGoodrich® All-Terrain T/A® KO2 tires, Recaro® bolstered seating, a 12-inch SYNC® 4 screen, and Pro Power Onboard™ (2.0kW).
- Active Valve Exhaust: Four selectable exhaust modes—Quiet, Normal, Sport, and Baja—let you tone down highway drone on I-90 or open the dual exhaust on backcountry trails.
1st & 2nd-Generation Full-Size (2010–2020)
Gen 2 EcoBoost® (2017–2020) & Gen 1 SVT 6.2L V8 (2010–2014)
Proven high-value pre-owned full-size Raptors available in both SuperCab and four-door SuperCrew® configurations.
- Gen 2 (2017–2020): Introduced the high-strength, military-grade aluminum-alloy body (shedding up to 500 lbs.), the 450-hp / 510 lb.-ft. High-Output 3.5L EcoBoost® V6, and the 10-speed automatic transmission.
- 2019–2020 Live Valve Upgrade: Late-Gen 2 Raptors added electronically controlled FOX™ Live Valve™ shocks, Trail Control™, and Recaro® seat options.
- Gen 1 SVT Raptor (2010–2014): Prized by enthusiasts for its naturally aspirated 6.2L BOSS V8 (411 hp / 434 lb.-ft. of torque), hydraulic power steering, and heavy-duty cast-iron block durability.
Midsize High-Speed Pickup
Ford Ranger Raptor®
Brings twin-turbo 3.0L EcoBoost® V6 power and Watts-link coil-spring rear suspension into a maneuverable 210.9-inch midsize footprint.
- Narrower Trail Footprint: At 79.8 inches wide (excluding mirrors) with a 43.3-foot turning diameter, the Ranger Raptor® navigates tight timber trails in the Bighorns that challenge full-size pickups.
- Front & Rear Locking Differentials: Driver-selectable electronic locking differentials on both axles pair with a 67.88:1 crawl ratio for technical rock crawling.
- MyMode™ Steering & Exhaust: Customize steering effort, damper stiffness, and active exhaust modes right from steering-wheel mode buttons.
Ultra4-Inspired 4-Door SUV
Ford Bronco Raptor®
Built with a removable hard top, frameless removable doors, and a track width 8.6 inches wider than a base Bronco.
- Competition-Grade Axles: Features a Dana 44™ AdvanTEK® front axle and a heavy-duty Dana 50™ AdvanTEK® solid rear axle with 37-inch all-terrain tires standard from the factory.
- Extreme Clearance & Articulation: 13.1 inches of ground clearance, 47.2-degree approach angle, 40.5-degree departure angle, and a front stabilizer bar disconnect that operates under load.
- Cold-Weather & Washout Ready: Marine-grade vinyl or leather-trimmed seating, rubberized washout flooring with drain plugs, and heated seats/steering wheel for Wyoming winters.
Why the Ford Raptor Excels in Sheridan County & the Bighorn Mountains
Unlike aftermarket lift kits that compromise alignment geometry, payload ratings, and ride quality on highway commutes, every Ford Raptor is engineered from the frame up for year-round Wyoming conditions:
- Twin-Turbo & Supercharged High-Altitude Power: Naturally aspirated engines lose roughly 3% of their power per 1,000 feet of elevation gain. When climbing from Sheridan (3,743 ft.) up US-14 to Granite Pass (8,950+ ft.) or US-16 Powder River Pass (9,666 ft.), the Raptor's twin-turbocharged EcoBoost® V6 or supercharged 5.2L V8 compresses intake air to preserve passing and towing power.
- 2-Speed Automatic 4WD (4A) with Hi-Lock Transfer Case: Pre-owned F-150, Ranger, and Bronco Raptors combine an on-demand 4-Auto (4A) clutch pack—ideal for alternating dry asphalt and blowing snowdrifts along I-90 between Buffalo, Sheridan, and Billings—with a mechanical-locking 4H/4L transfer case for deep backcountry snow.
- FOX™ Live Valve™ Electronic Damping: Suspension height sensors and body accelerometers read terrain hundreds of times per second, automatically firming shock compression before bottoming out over washouts on Red Grade Road while smoothing out expansion joints on Coffeen Avenue.
- Factory Skid Plates & Upfitter Switches: Heavy-duty front bash plates protect the front differential, transfer case, and intercooler from ice chunks and trail rocks, while 6 overhead auxiliary upfitter switches come pre-wired to the underhood power distribution box for winches, ditch lights, or onboard air compressors.
Full-size F-150 Raptor® stance with high-clearance fenders, marker lights, and functional hood heat extractors.
Ranger Raptor® pairs a 405-hp 3.0L EcoBoost® V6 with front and rear locking differentials in a midsize frame.
Bronco Raptor® delivers 13.1 inches of ground clearance, 37-inch tires, and removable roof panels.
Why Buy a Used Ford Raptor at Fremont Ford Sheridan?
Buying a high-output off-road vehicle requires a dealership that knows how to inspect long-travel suspension components, transfer cases, and twin-turbo powertrains. At 1658 Coffeen Ave in Sheridan, WY, Fremont Ford Sheridan backs your purchase with:
Factory-Trained Ford Mechanical & Suspension Inspection
Before any pre-owned Raptor hits our lot, our factory-trained technicians and Ford Senior Master Technician inspect the FOX™ internal bypass shocks, CV boots, aluminum control arms, IWE 4x4 hub actuators, skid plates, and turbocharger wastegate/cam phaser operation. Qualifying Fremont Certified Pre-Owned models also include a verified clean CARFAX® vehicle history report and limited warranty coverage*.
Fremont Care Maintenance Plan on Eligible Purchases*
Fremont Care comes with eligible vehicle purchases at Fremont Ford Sheridan. During your first 12 months of ownership, Fremont Care provides 2 oil changes and 2 tire rotations performed by our service department to keep your Raptor's high-output engine and 33-inch, 35-inch, or 37-inch all-terrain tires wearing evenly.
Statewide Used Raptor Sourcing & Transfers Across Wyoming
Pre-owned Raptors move quickly in Wyoming. Because Fremont Motor Company operates dealerships across Sheridan, Casper, Cody, Powell, Lander, Riverton, and Rock Springs, we can transfer an available used F-150 Raptor®, Ranger Raptor®, or Bronco Raptor® from any Fremont store directly to Sheridan or deliver it to your home.
15-Bay Ford Service Center & Ford Mobile Service
Our 24,000-sq.-ft. Sheridan facility features an enclosed drive-up service lane, 15 service bays, genuine Ford Performance parts, and Ford Mobile Service that brings routine maintenance and recall updates directly to your driveway or ranch in the Sheridan area.
Used Ford Raptor Frequently Asked Questions (Sheridan, WY)
Get direct answers to common questions Northern Wyoming and southern Montana shoppers ask when buying a pre-owned Ford Raptor:
What engines come in a used Ford F-150 Raptor?
First-generation SVT Raptors (2010–2014) primarily feature a naturally aspirated 6.2L V8 producing 411 hp and 434 lb.-ft. of torque (with a 310-hp 5.4L V8 in early 2010 models). Second-generation (2017–2020) and third-generation (2021–present) F-150 Raptors are powered by a 3.5L High-Output EcoBoost® Twin-Turbo V6 delivering 450 hp and 510 lb.-ft. of torque paired with a 10-speed automatic transmission. The F-150 Raptor R™ (2023–present) adds a 5.2L Supercharged V8 rated at 700 to 720 hp and 640 lb.-ft. of torque.
How much can a used Ford Raptor tow when properly equipped?
When properly equipped, a third-generation (2021+) F-150 Raptor® with the 3.5L High-Output EcoBoost® V6 is rated for up to 8,200 lbs. of maximum conventional towing, while the Supercharged V8 F-150 Raptor R™ is rated for up to 8,700 lbs. Second-generation (2017–2020) F-150 Raptors tow up to 6,000 lbs. (SuperCab) or 8,000 lbs. (SuperCrew®) when properly equipped. The midsize Ranger Raptor® is rated for up to 5,510 lbs., and the Bronco Raptor® is rated for up to 4,500 lbs. when properly equipped.
What is the difference between Gen 2 (2017–2020) and Gen 3 (2021+) used F-150 Raptors?
While both generations use the 450-hp High-Output 3.5L EcoBoost® V6 and an aluminum-alloy SuperCrew® body, the 3rd-generation (2021+) F-150 Raptor replaced the Gen 2's rear leaf springs with a 5-link rear coil-spring suspension featuring 24-inch coil springs and extra-long trailing arms. Gen 3 also introduced factory 37-inch tire packages, larger 3.1-inch FOX™ Live Valve™ shocks, an active dual-exhaust system, and a 12-inch SYNC® 4 touchscreen.
Does Fremont Care come with a used Ford Raptor purchased at Fremont Ford Sheridan?
Yes, Fremont Care comes with eligible vehicle purchases at Fremont Ford Sheridan, providing 2 oil changes and 2 tire rotations within your initial 12 months of ownership. Ask our sales team at 1658 Coffeen Ave for full program eligibility details on specific pre-owned Raptor VINs.
What is included with a Fremont Certified Pre-Owned Ford Raptor?
Qualifying Fremont Certified Pre-Owned vehicles undergo a thorough multi-point mechanical and safety inspection by our factory-certified technicians, include a verified clean CARFAX® vehicle history report, and come backed by limited warranty coverage. Contact our Sheridan team for written warranty coverage terms.
Can Fremont Ford Sheridan transfer a used Raptor from another Fremont dealership in Wyoming?
Yes. If you spot a used F-150 Raptor®, Ranger Raptor®, or Bronco Raptor® at another Fremont Motor Company location in Wyoming, our team in Sheridan can coordinate a vehicle transfer to 1658 Coffeen Ave or arrange direct home delivery.
Test Drive a Pre-Owned Ford Raptor at Fremont Ford Sheridan
Visit our showroom at 1658 Coffeen Ave, Sheridan, WY 82801 (off I-90 Exit 25) or call (307) 683-4070 to check availability on incoming used Raptors, value your trade-in, or request a statewide transfer.
*Towing, Payload & Off-Road Disclosures: Maximum conventional towing (up to 8,700 lbs. on F-150 Raptor R™; up to 8,200 lbs. on 2021+ F-150 Raptor®; up to 8,000 lbs. on 2017–2020 F-150 Raptor® SuperCrew®; up to 5,510 lbs. on Ranger Raptor®; up to 4,500 lbs. on Bronco Raptor®) and maximum payload ratings (up to 1,410 lbs. on F-150 Raptor R™; up to 1,405 lbs. on F-150 Raptor®; up to 1,373 lbs. on Ranger Raptor®; up to 1,155 lbs. on Bronco Raptor®) apply when properly equipped. Maximum horsepower, torque, payload, and towing are independent attributes and may not be achieved simultaneously. Actual towing and payload vary based on model year, tire package, cargo, vehicle configuration, accessories, and number of passengers. Always consult the Owner's Manual and door-jamb certification label before off-road driving, water fording, or towing.
**Horsepower & Torque: Horsepower and torque ratings for the 3.5L High-Output EcoBoost® V6 (450 hp / 510 lb.-ft.), 5.2L Supercharged V8 (700–720 hp / 640 lb.-ft.), and 3.0L EcoBoost® V6 (405 hp / 430 lb.-ft. on Ranger Raptor®; 418 hp / 440 lb.-ft. on Bronco Raptor®) are based on 91-octane or higher premium fuel per SAE J1349® standard.
*Fremont Care & Fremont Certified Pre-Owned Disclosures: Fremont Care comes with eligible vehicle purchases and includes 2 oil changes and 2 tire rotations within the initial 12 months of ownership; see Fremont Ford Sheridan for complete program eligibility and coverage terms. Fremont Certified Pre-Owned vehicles include a multi-point mechanical and safety inspection by factory-certified technicians, CARFAX® vehicle history verification, and limited warranty coverage (see dealer for written warranty terms, mileage/time limits, and deductibles). Pre-owned vehicle availability, equipment, and pricing are subject to prior sale.
